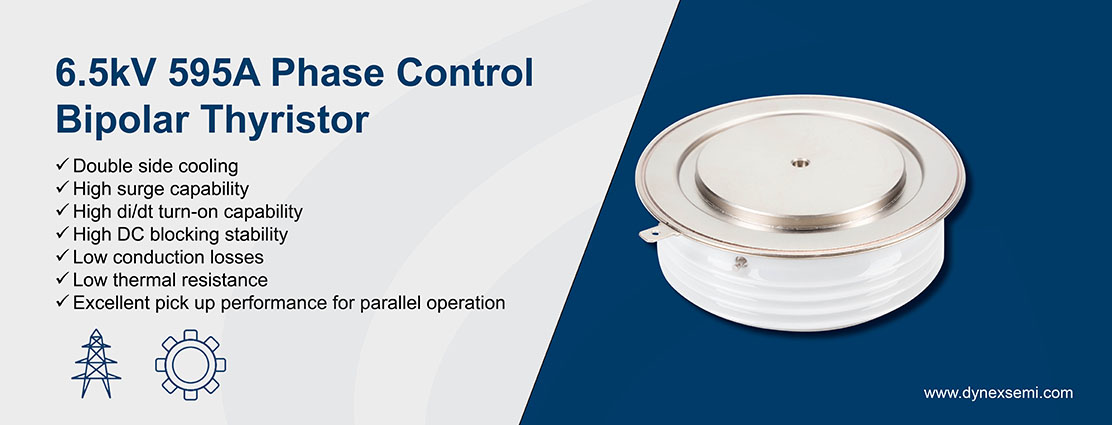

The DCR590G65 Phase Control Thyristor is one of our most efficient and dependable high-power Bipolar devices.

The device is designed with high surge current capabilities and manufactured in our G outline package.

In addition, the device has a chip junction temperature that works reliably within an operating range from -40°C to a maximum of 125°C.

The device’s characteristics are well suited for use in the soft starter applications with electric motors. Operating at line frequencies where switching losses are small, the low conduction losses of DCR590G65 enables increased system efficiency.

This product offers a number of benefits for end-user applications inclusive of; reduced system cost, improved thermal characteristics, maximised system efficiency and reliable operation in variable environments.

Key Features:

• Double side cooling
• High surge capability
• High di/dt turn-on capability
• High DC blocking stability
• Low conduction losses
• Low thermal resistance
• Excellent pick up performance for parallel operation

Applications:

• Soft starter
• High power drives
• High voltage power supplies
• Static switches

Download the DCR590G65 datasheet here.
