Product of the Month June 2020

3.3kV 1500A Single Switch, E Package IGBT Module

Product of the Month Dynex June

3.3kV 1500A Single Switch, E Package IGBT Module

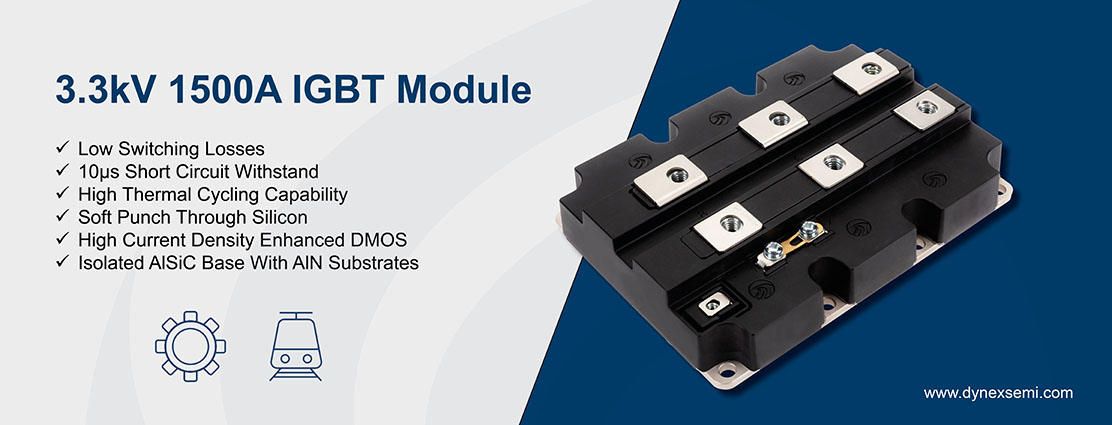

The single switch 1500A IGBT module, DIM1500ESM33-TF000 is the latest addition to the Dynex 3.3kV low switching loss IGBT range.

The module is designed with soft punch through technology and high current density enhanced DMOS.

The high-performance device has a wide reverse bias safe operating area (RBSOA) plus 10μs short circuit withstand.

In addition, the module has a chip junction temperature that works reliably within an operating range from -40°C to a maximum of 150°C.

This device is highly efficient and optimised for applications such as; traction drives, motor controllers, inverters and choppers requiring high thermal cycling capability.

The DIM1500ESM33-TF000 incorporates an electrically isolated base plate and low inductance construction, enabling circuit designers to optimise circuit layouts and utilise grounded heat sinks for safety.

This product offers a number of benefits for end-user applications inclusive of; improved thermal characteristics, maximised system efficiency and reliable operation in severe environments.

Key Features:

  • Low Switching Losses
  • 10µs Short Circuit Withstand
  • High Thermal Cycling Capability
  • Soft Punch Through Silicon
  • High Current Density Enhanced DMOS

Applications

  • High Reliability Inverters
  • Motor Controllers
  • Traction Drives
  • Choppers

The Powerline range of high-power modules includes half bridge, chopper, dual, single and bi-directional switch configurations covering voltages from 1200V to 6500V and currents up to 3600A.

Download the DIM1500ESM33-TF000 datasheet here.
